RSM Additional equipment

für concrete plants / concrete mixing plants

Here you can find our other offers of brand new equipment:

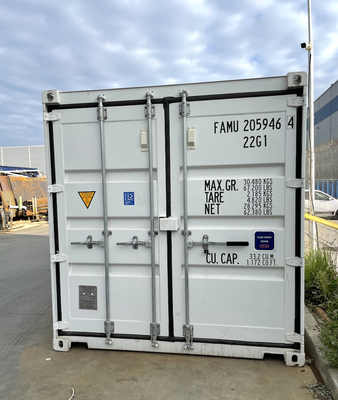

1. RSM addmixture/chemical container (factory new)

Additive storage / container

installed in a > first trip < sea container
External dimensions:
L 6,058 x W 2,438 x H 2,591

insulated

factory-new equipment / fittings

collecting basin
walkable grating
pump holder for 4 pumps
pump filling line for 4 pumps

Optional:

Brand new gear pumps / Würschum ZD 24
Brand new additional pump bracket
Brand new additional pump filling line

2. WATER TANK WITH PUMP GROUP

in two versions (cylindrical and square)

2.1 WATER TANK CYLINDRICAL

Steel water tank, cylindrical design

Material thickness – steel plates: 4 mm
Diameter: 2,380 mm
Length: 6,000 mm
Gross capacity: approx. 25m3
Without insulation
Painted in RAL 9002
with access ladder + back protection
with railing
Opening with lid on top

Equipped with a pump group:

• Water pumps – Speroni/Italy

• Number of pumps: 2 pieces

• Electrical power 2 x 7.5 kW

• Control cabinet

• Steel beam

• Pressure tank 100 liters

Technical data:

• Pressure 4-5 bar

• Outlet pipe: DN80

• Water flow 30 m3/h + 30 m3/h

2.2. Wassertank quatratisch

Stahl-Wassertank- Container- Quadratische Ausführung

Ø Länge 5000mm

Ø Breite: 2300mm

Ø Höhe: 2300mm

Ø Materialstärke – Stahlplatten: 4 mm

Ø Fassungsvermögen brutto:ca.25m3

Ø Lackiert in RAL 9002

Ausgestattet mit einer Pumpengruppe:

• Wasserpumpen – Speroni/Italien

• Anzahl der Pumpen: 2 Stück

• Elektrische Leistung 2 x 7,5 kW

• Schaltschrank

• Stahlträger

• Druckbehälter 100 Liter

Technische Daten:

• Druck 4-5 bar

• Auslassrohr: DN80

• Wasserdurchfluss 30 m3/h + 30 m3/h
