We currently offer our standard silos in several sizes:

Silo equipment and additional services:

(available at an additional cost) - Silo equipment (filters, valves, cement level, etc.) - Ladders or bridges - Mobile foundations - Delivery and installation

Equipment / Fittings, e.g., for 1 single-chamber mobile silo

-1 DN 100 internal filling line with flange

-1 DN 60 external cable conduit in the silo

-1 DN 600 inspection opening in the silo roof

-1 filter frame for Silotop Zero jet filter

-1 fixed internal crushing cone in the outlet area

-1 external water deflector ring on the cone

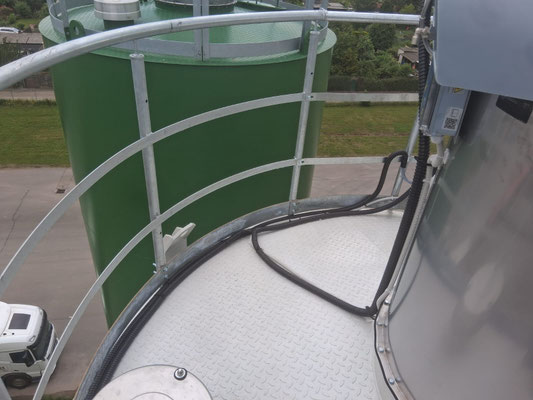

-1 roof edge railing

Ø 2,800 mm galvanized, H = 1,200 mm

-4 crane eyes on the silo shell

-2 extended crane eyes on the silo roof

-1 folding access ladder, approx. 15.00 m,

hot-dip galvanized with safety cage, one access step, and

a safety door at the ladder exit. Designed in accordance with accident prevention regulations (UVV)

Surface treatment of the silos:

All external silo surfaces are blast-corroded according to SA 2.5

1 x primer coat approx. 60 μm

1 x 2K top coat approx. 40 μm RAL 9002

Silo interior surfaces untreated, swept clean

Silo equipment

- 1 x jet filter Silotp Zero SILAB14EV

- 1 x continuous level probe type Vegaflex 82

- 1 x full indicator as a rotary paddle switch

- 1 x pressure detector

- 1 x overpressure/underpressure flap

- 1 x air aerator with 4 ventilation nozzles

- 1 x silo shut-off valve NW 300

- 1 x pinch valve with limit switch and Storz coupling

- 1 x maintenance unit for the pneumatics

- 1 x electrical control cabinet

including horn and flashing light

including electrical and pneumatic pre-assembly

up to the silo base

Mobile foundation inserts

Welding assemblies and individual parts as inserts

to On-site grouting of the mobile foundations

2 x 2.00 x 4.00 m

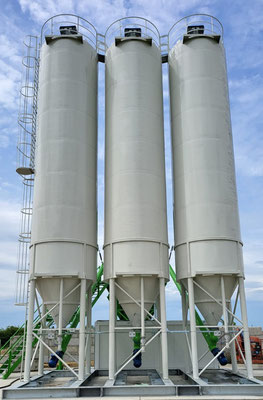

pictures 65m3/80to Silos

pictures 80m3/100to Silos

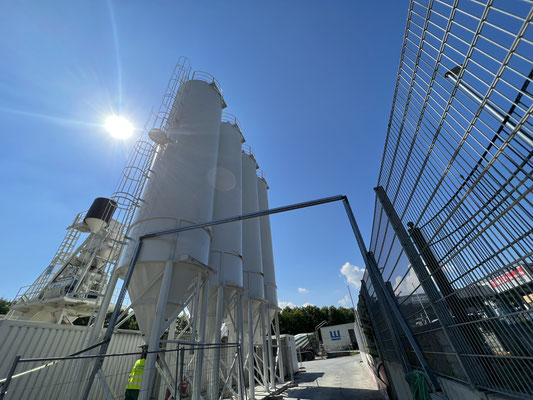

2 X 100 tons Silo complete with complete equipment, substructure and mobile foundation

realized in June 2026

Have we piqued your interest? Send us your inquiry now using our inquiry form!
