M1CTZ - 56m3/h - (EQUIPPED BY STETTER India)

We don't just deliver - we implement your entire project.

From planning to commissioning - everything from a single source.....

manufactory: Stetter India / Tublorom
Model: M1 TZ
capacity per hour: ca. 56m³/h
Aggregate Storage in a  compartment batcher: 4x10m³ (total 40m3)
mixer: 1 pcs  Stetter Turbo Pan Mixer
Dosing
Aggregate, Water, Cement, Optional with chemical dosing
cement silos:  Optional 2x 69m³ / ca. 80t 80m³ / ca. 100t
cementsilo Equipment: 2x cement screws, Filter, etc. (include)
cladding / housing: optionally possible
control and Software: full automatic GEDIS / IBS33W
delivers: delivery free site are optionally possible
Assembly and commissioning: optionally possible
operators stand: optionally possible (in a Office container)


Power connection:

Three phase current 415 V, 50 cps  ± 10%

Water approx. 4-5 bars, DN 80, 60 mc/h

Power supply approx. 220 kVA for concrete mixing plant



inclusive CE Certifikate

including complete documentation and, if required, necessary noise and emission reports


main parts

Mixer

Stetter Turbo Pan Mixer 1500/1000 l

output: 1m3 - compacted concrete

aggregate storage

Aggregate storage 40m3 in a compartment batcher with 4 boxes of 10m3 each including skip hoist (skip weighing)

Mobil-foundation

Mobile foundations for the concrete mixing plant - for an additional charge


Dosing

Aggregate by Skip : 5000kg

cement: 1 X max 750kg

water: 1 X max 375 kg

admixture -chemicals

1 X 12l

(expansion possible)

control

Brand: GEDIS Germany

 TYPE IBS33W

fully automatic



cement silo-equipment

for 2 cement silos (consisting of conveyor screw, filter, overfill protection, etc.) including


cladding / housing

for an additional charge -

Cladding / housing of the mixer platform (including 1 window + 1 door), weighing device on the mixer platform, cover of the skip hoist(side parts with sheet metal cover)

The housing consists of 40 mm sandwich panels

operators stand

for an additional charge

Office container as control container for operator stand







Zementsilos

We also supply cement silos in sizes 80 ton and 100 ton for an additional charge.

If you want incl. mobile foundations

further information on :

https://www.rsm-silos.de/

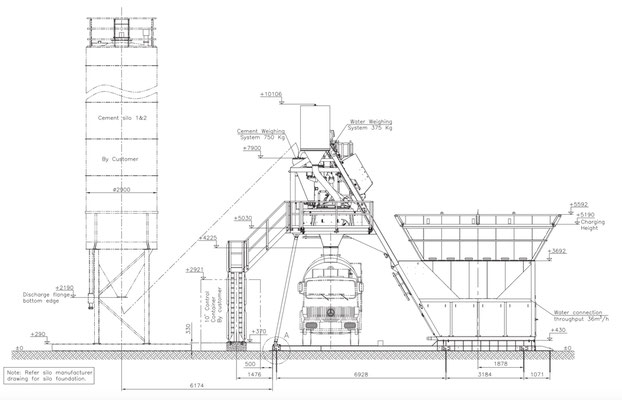

sketch

pictures

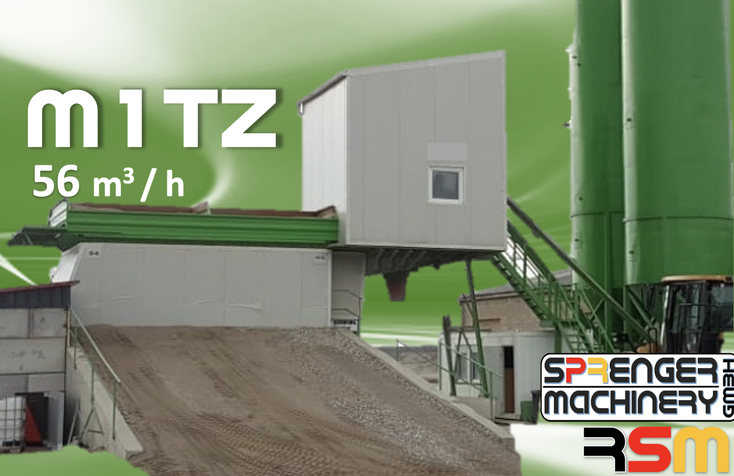

reference object M1TZ in Eisenach / Germany

M1CTZ incl. aggregate feeding system and complete housing
