M3 ILS - 135m3/h - (EQUIPPED BY STETTER India)

wit 6 boxes aggregate storage inline silo (row silo)

We don't just deliver - we implement your entire project.

From planning to commissioning - everything from a single source.....

manufactory: Stetter India / Tublorom
model: M3 ILS
capacity per hour: ca. 120-135m³/h
aggregate storage inline silo with weighing belt: 2x30m³ + 4X15 (total120m3)
Mixer: 1 pcs  Stetter twin shaft mixer DW3.0
Dosing
Aggregate, Water, Cement, Chemical dosing
Cement silos:  Optionally 3x 69m³ / ca. 80t oder 80m³ / ca. 100t
Cement silo equipment: 3x cement screws, Filter, etc. (include)
Cladding/housing: optionally possible
control and Software: full automatic GEDIS / IBS33W
Delivery: Delivery FREE SITE are optionally possible
Assembly and commissioning: are optionally possible
Operators stand: optionally possible / in a office container
Power connection:

Three phase current 415 V, 50 cps  ± 10%

Water approx. 4-5 bars, DN 80, 60 mc/h

Power supply approx. 220 kVA for concrete mixing plant

include CE Certifikate

including complete documentation and, if required, necessary noise and emission reports


main parts

Mixer

  • Stetter twin shaft mixer DW 3.0
  • 4500/3000 l
  • output per charge: 3m3 compacted concrete

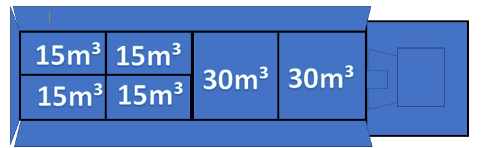

Aggregate storage inline silo / row silo

  • total 120m3
  • 2X30m3
  • 4X15m3
  • incl. skip hoist
  • incl. weighing belt (max 5.000 kg)

MOBILE FRAME

  • MOBILE FOUNDATION FRAME - include
  • for the mixing plant
  • and for the row silo

Dosing and Feeding

  • Aggregate: Skip : 5000kg
  • cement: 1 X max 750kg
  • water: 1 X max 375 kg
  • admixture -chemicals 2 X 20l  (expansion possible)

feeding by skip hoist

Control and Software

  • Brand : GEDIS Germany

  • Type:  IBS33W

  • full automatic

  • including safety devices

CEMENT SILO-EQUIPMENT

for 3 cement silos, consisting of

  • screw conveyor,
  • filter,
  • overfill protection, etc.



for an additional charge - cladding / enclosure, optional:

  • Upper part - housing of the mixer platform (including 1 window + 1 door), weighing devices on the mixer platform, cover of the skip hoist(side parts with sheet metal cover)
  • Lower part - housing of the row silo (aggregate storage)

cement silos

For an additional charge we also supply cement silos in the sizes

  • approx. 65m3/ 80to
  • approx. 80m3/ 100to
  • if required including mobile foundations

sketch

(ALS BEISPIELFÜR EINE ANLAGE MIT 4FACH REIHENSILO)

Bilder

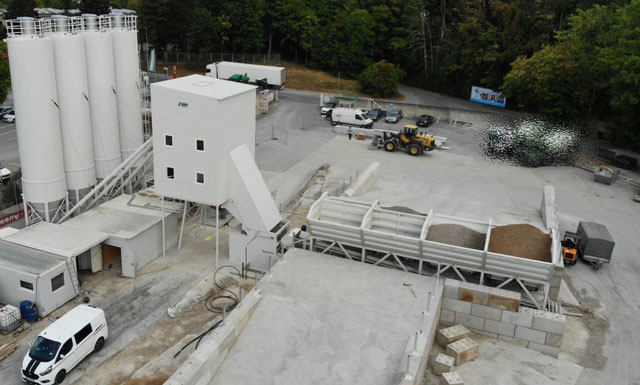

reference object  M3ILS SOEST/DEUTSCHLAND

M3ILS including extension of the mixer platform, full enclosure and recycling plant
