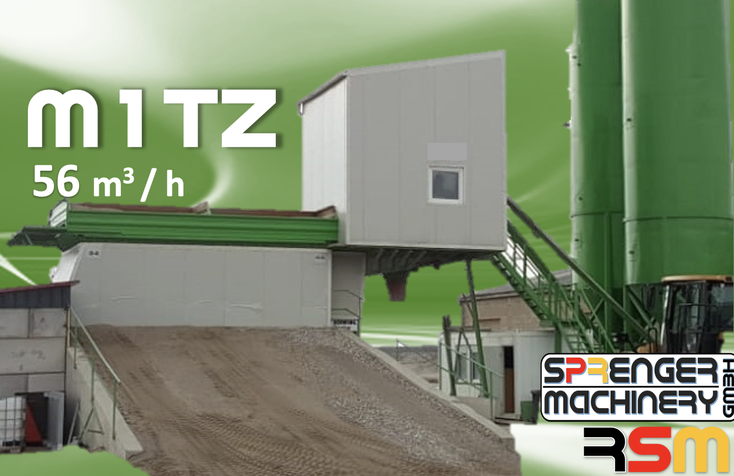

M1CTZ - 56m3/h - (EQUIPPED BY STETTER India)
We don't just deliver - we implement your entire project.
From planning to commissioning - everything from a single source.....
Power connection:
Three phase current 415 V, 50 cps ± 10%
Water approx. 4-5 bars, DN 80, 60 mc/h
Power supply approx. 220 kVA for concrete mixing plant

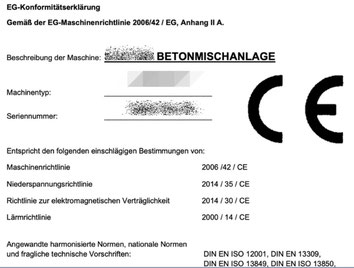

including complete documentation and, if required, necessary noise and emission reports
Stetter Turbo Pan Mixer 1500/1000 l
output: 1m3 - compacted concrete
Aggregate storage 40m3 in a compartment batcher with 4 boxes of 10m3 each including skip hoist (skip weighing)
Mobile foundations for the concrete mixing plant - for an additional charge
Aggregate by Skip : 5000kg
cement: 1 X max 750kg
water: 1 X max 375 kg
admixture -chemicals
1 X 12l
(expansion possible)
Brand: GEDIS Germany
TYPE IBS33W
fully automatic
for 2 cement silos (consisting of conveyor screw, filter, overfill protection, etc.) including
for an additional charge -
Cladding / housing of the mixer platform (including 1 window + 1 door), weighing device on the mixer platform, cover of the skip hoist(side parts with sheet metal cover)
The housing consists of 40 mm sandwich panels
for an additional charge
Office container as control container for operator stand
We also supply cement silos in sizes 80 ton and 100 ton for an additional charge.
If you want incl. mobile foundations
further information on :
https://www.rsm-silos.de/
M1CTZ incl. aggregate feeding system and complete housing
